Vetus Hatches and Portholes
Contact us











Buy now



































Buy now

Replacement seals

























Buy now























Buy now



Vetus Hatch, Porthole and window seals

ORDER CODE TYPE OF HATCH/PORTHOLE PRICE
SRS LIB Vetus Libero seal £5.00 per metre
SRS PLA Vetus Planus seal £4.50 per metre
SRS333 Vetus PM/PW/PX/PZ seal £4.60 per metre
SRS1610 Vetus PS stainless portholes seal £7.50 per metre
IRS230 Vetus PK portholes seal £3.75 per metre
PR4292 Vetus fixed pane windows £6.00 per metre


The prices shown are per metre length. We can cut the seal to the length required and join the ends together if you let us know the length used on your hatch/portholes. You will be charged by the metre, joins are free.
Postage and Packing Extra: Up to 10 metres £4.00, 11-20 metres £6.50, >20 metres £7.50

__________________________________________________________________

Opening ports that will* fit Westerly low-line aperture
PA6317 Low Profile Aluminium Porthole

At last we are able to offer an off-the-shelf replacement for your crumbling Marsh Walters framed windows. The cut out size is slightly larger at 634x175mm against 625x170mm but Westerly were a bit random at cutting the holes in the coachroof sides so it shouldn't require too much adjustment and the overall size is slightly smaller at 652x193mm against the original's 663x210mm. Whilst the new frame should just cover the screw holes in the boat I think you will need to fill the holes with some epoxy gelcoat filler before installing rather than having to take the window out again to do the job properly if it starts leaking. The Vetus unit is a clamp fit and doesn't need any screw holes for fixing.

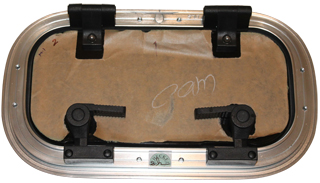

Picture of a slightly smaller PA 3517 window recently fitted

£297.45 each

With mosquito screen and interior trim included, we will also include Scapa 3507/12 bedding tape and A4 stainless fixing screws

__________________________________________________________________

Hatch and Porthole Special Offers
(other sizes available - see catalogue for details)



VETUS LIBERO ESCAPE HATCHES

Libero hatches have anodized aluminium frames, A choice of 32 or 55mm corner radius and 12mm smoke grey tinted acrylic. Handles both inside and out with locks on the inside for security.

CE classified A II (suitable for ocean use when mounted on the deck or coachroof top).



Vetus Libero 3755 Special offer One only £300.00 +£13.70 p+p
(Our normal price is £380.00, manufacturers list price £399.00)

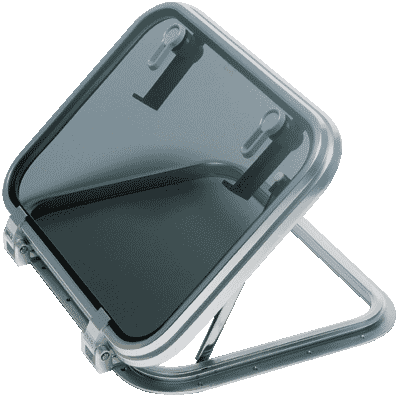

Size 5037 (picture is 4532)
cutout size500x370mm, corner radius 55mm
overall size 560x445mm including hinges
• Optional counter flange inner trim and mosquito screen £105.00

__________________________________________________________________

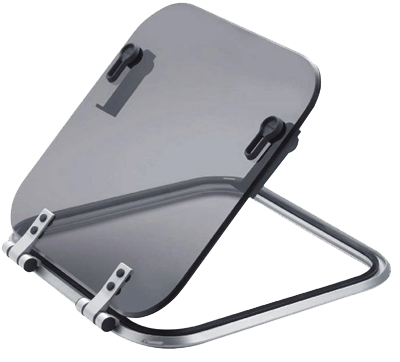

Vetus Planus 4545 Ecape hatch
Special offer One only £160.00 +£12.50 p+p
(Our normal price is £200.00, manufacturers list price £216.00)

Vetus code PLA45
cutout size 424x424mm, corner radius 75mm
overall size 474x490mm including hinges
• Optional counter flange inner trim and mosquito screen £105.00

Vetus Planus 3023 Ventilation hatch
Special offer One only £95.00
+£6.50 p+p
(Our normal price is £121.60, manufacturers list price £130.00)

Vetus code PLA30L
cutout size 300x230mm, corner radius 75mm
overall size 350x295mm including hinges
• Optional counter flange inner trim and mosquito screen £80.00

______________________________________________________________________________

VETUS PORTHOLES
Vetus portholes have anodised aluminium frames and 10mm thick smoke grey tinted acrylic. CE classified A111 (suitable for ocean use when mounted in the coachroof side).

Picture of PZ77 fitted in fixed acrylic window.

Vetus PM23 Four only Special offer price £110.00 each +£6.50 p+p

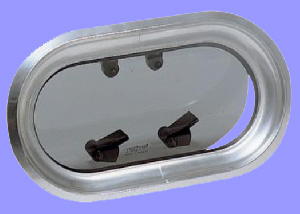

Size PM23 (picture is PM21)
cutout size 322x177mm radius 88.5mm
overall size 344x199mm

________________________________________________________________________

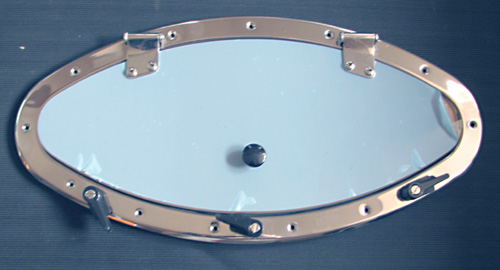

Vetus PS62 One only to clear £200.00+£8.00 p+p New old stock.


View from inside, acrylic has protective film in place. The acrylic is tinted pale brown but I can change this to clear or grey for £25.00.
Stainless steel eliptical porthole complete with counter flange and fixed mosquito screen.
Cutout size
460x200mm
overall size 510x250mm
