Rivets for Lewmar hatch catch blocks
Penny Washers aka
Mudguard Washers
Nylon Washers
Cup Washers
Fixings for Lewmar
Superhatch Hinges
Canopy and Sprayhood
fixings
Aluminium bar
Orings
Dome nuts
Rivets for Lewmar hatch catch blocks
Sealed closed dome head aluminium/steel blind rivets. Drill out the old ones with 5mm drill and fit these with a pop riveter. If the shape of the catch block prevents the riveter from making close contact with the rivet head put a couple of washers eg M4 over the rivet shaft between the rivet head and the riveter.
ITEM |
Diameter x Length |
Material |
PRICE |
Rivets: set of four |
4.8mm x 14mm |
Aluminium/ steel |
£1.00 |
Penny Washers aka Mudguard Washers
ITEM |
Outside/inside
dia. |
Material |
PRICE PER
10 |
M5 Penny Washers |
25mm/5.5mm |
A4 stainless |
£1.50 |
M6 Penny
Washers |
25mm/6.5mm |
A4 stainless |
£3.00 |
M6 Penny Washers
|
30mm/6.5mm |
A4 stainless |
£3.50 |
Nylon Washers
SIZE/COLOUR |
Outside/inside
dia. |
Thickness |
PRICE PER
10 |
M4 Nylon6.6
white |
9mm/4.3mm |
0.8mm |
£0.80 |
M5 Nylon6.6
white |
11mm/5.3mm |
1mm |
£0.80 |
M6 Nylon6.6 white
|
12mm/6.4mm |
1.5mm |
£0.80 |
M6 Nylon Black
|
12mm/6.4mm |
1.5mm |
£0.70 |
M10 Nylon
6.6 white |
22mm/10.5mm |
2.5mm |
£2.40 |
M12 Nylon6.6
white |
24mm/13mm |
2.5mm |
£2.50 |
Cup Washers
Pressed stainless steel
ITEM |
Outside/inside
dia. |
Material |
PRICE PER
10 |
No6 Cup Washers |
11.5/4.2mm |
A2 stainless |
50p |
No8/M4 Cup
Washers |
12.8/5.0mm |
A2 stainless |
50p |
No10/M5 Cup
Washers |
15.0/6.3mm |
A2 Stainless |
£1.00 |

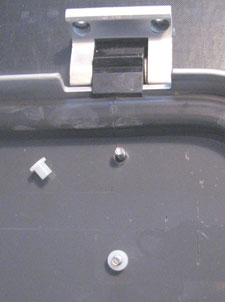

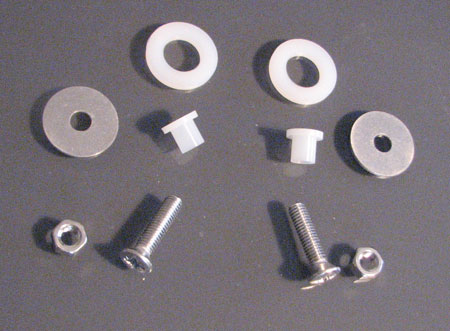

Fixings for Lewmar Superhatch Hinges
A4 grade stainless steel nyloc nuts and
nylon spacers to replace the chromed-brass originals which
often suffer from electrolytic corrosion. Complete with M6
threaded screws and washers. Please note that the new nuts
have metric threads and cannot be used with the original screws.
|
CODE |
ITEM |
PRICE
PER HATCH |
SH0 |
To fit
hatch size 20 (251x396mm)
(2 hinges, 10mm acrylic) |
£5.60 |
SH1 |
To fit
hatch sizes 30 to 60 (2 hinges, 10mm acrylic) |
£5.60 |
SH2 |
To
fit hatch size 70 (676x676mm)
(3 hinges, 12mm acrylic) |
£8.40 |
|
The fixings above are for early model
hatches where the strap hinge is fixed through the acrylic.
If you are unsure which model hatch you have click the link
to the Lewmar website.
Canopy and Sprayhood Fixings
Press stud
fixings for sprayhoods and canopies often found on aluminium
frames.
|
ITEM |
PRICE
PER 10 |
Press
Stud Base |
£2.50 |
Canopy
Stud (2BA Thread) |
£6.50 |
|
Dome Nuts
A4 stainless steel dome nuts, 7mm thread length
ITEM |
PRICE PER
10 |
M6 Dome nuts
A4 stainless |
£3.50 |
Aluminium bar
Make your own
corner brackets for aluminium frames etc. For some strange
reason imperial dimensions come from the mill in inch sizes except the length
which is in metres. Not anodised. Will be supplied cut into
half metre lengths for ease of postage unless your request
otherwise.
ITEM |
PRICE
PER METRE |
1/2"x1/8"
(12.5x3mm ish) |
£6.00 |
3/8"x1/8"
(9.5x3mm ish) |
£5.00 |
12mmx3mm |
£6.00 |
10mmx3mm |
£5.00 |
|
O Rings
Nitrile rubber
O rings
ORDER
CODE |
INTERNAL
DIAMETER |
RING
THICKNESS |
PRICE
PER 10 |
Often
used for |
OR 06-20 |
6mm |
2mm |
£1.50 |
|
OR
08-20 |
8mm |
2mm |
£1.50 |
|
OR 10-20
|
10mm |
2mm |
£1.50 |
|
OR
10-30 |
10mm |
3mm |
£2.00 |
|
OR 11-20
|
11mm |
2mm |
£1.50 |
Lewmar
OS ports |
OR 12-20
|
12mm |
2mm |
£1.50 |
|
OR
16-25 |
16mm |
2.5mm |
£2.00 |
Lewmar
hatches old style |
OR 19-25
|
19mm |
2.5mm |
£2.00 |
Bomar |
OR
20-30 |
20mm |
3mm |
£2.00 |
Vetus
hatches |
OR 25-30 |
25mm |
3mm |
£2.00 |
Lewmar
comma shaped handles |
|
|
