VETUS UFO STYLE VENTILATORS

Good ventilation is essential (especially if you cook or heat with gas) and a lack of it is the reason why so many modern boats have mildew or black spots on the walls and ceilings. They may have lots of opening portholes and hatches but when the boat is left, everything is dogged down tight and no air can circulate.
These vents have a rugged stainless-steel cover and are smaller so not interchangeable with the ECS vents shown below.
Basic unit waterproof except when submerged, if you're expecting waves use the Vent with inner shut off unit. They can be mounted either through the grp or on an acrylic window or hatch.
Overall size: 200mm diameter x 30mm high
Cutout diameter: 72mm
These units all have an interior trim and a mosquito screen.

ITEM ORDER CODE PRICE POST AND
PACKAGING
CLICK ON PIC
Vetus UFO static vent with mosquito screen UFO £67.00 £4.00
Vetus UFO static vent with inner shut off unit UFO2 £90.00 £4.00



ECS UFO STYLE VENTILATORS

Good ventilation is essential (especially if you cook or heat with gas) and a lack of it is the reason why so many modern boats have mildew or black spots on the walls and ceilings. They may have lots of opening portholes and hatches but when the boat is left, everything is dogged down tight and no air can circulate.
These vents have a rugged stainless-steel cover, translucent plastic centre insert on the Ventilite or white plastic on the Ventair.
Basic unit waterproof except when submerged, if you're expecting waves use the Vent with inner shut off unit. They can be mounted either through the grp or on an acrylic window or hatch.
Overall size: Stainless cover 230mm (9"), Ventilite insert 172mm (6.75") diameter x 32mm (1.25") high
Cutout diameter: 99mm (3.875")
Shut off units have a flange depth of 25mm (1")

ITEM ORDER CODE PRICE POST AND
PACKAGING
CLICK ON PIC
Ventilite clear insert for ECS Vents ECS4201 £25.00 £4.00
ECS Ventilite with stainless steel cover ECS4205 £75.00 £4.50
ECS Ventilite shutoff, clear plastic insert with stainless steel cover ECS4481 £85.00 £4.50
ECS Ventair shutoff, white plastic insert with stainless steel cover ECS4480 £82.50 £4.50
Bulkhead grilles for vents ECS4211 £10.00 £2.00
Replacement O ring seal for ECS Vents ECS-Oring £2.00 £2.00 No picture
Replacement mosquito screen for vents ECS-mos £2.00 £1.50 No picture

TREM UFO STYLE VENTILATORS

These vents are clones of the ECS ventilite but the stainless cover is lighter in weight than the ECS version.
Basic unit waterproof except when submerged. They can be mounted either through the grp or on an acrylic window or hatch.
Overall size: 227mm (9") diameter x 38.5mm (1.5") high
Cutout diameter: 99mm (3.875")

ITEM ORDER CODE PRICE POST AND
PACKAGING
CLICK ON PIC
Trem vent, stainless steel cover with clear insert TREM £55.00 £4.00 No picture

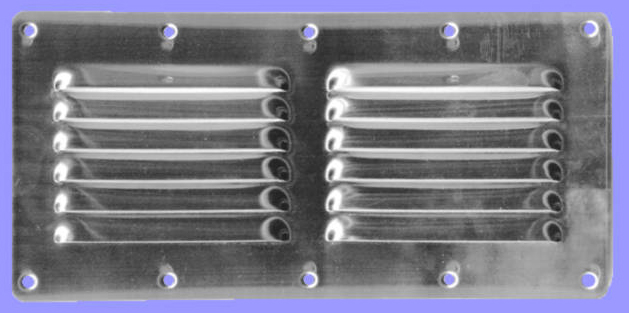

LOUVRED VENTILATORS

A4 grade stainless steel vents for mounting on verticle surfaces such as washboards, doors and lockers where permanent ventilation is required.

ITEM WIDTH x HEIGHT PRICE POST AND
PACKAGING
PRICE FITTED TO WASHBOARD
Small ventilator 127x65 mm £3.50 £1.50 £20.30
Medium ventilator 127x115 mm £5.50 £1.50 £22.15
Large vertical 127x228 mm £7.50 £1.50 £26.50
Large horizontal 230x115 mm £9.00 £1.50 £26.75
Black Plastic 257x125 mm £5.50 £2.00

£22.20
